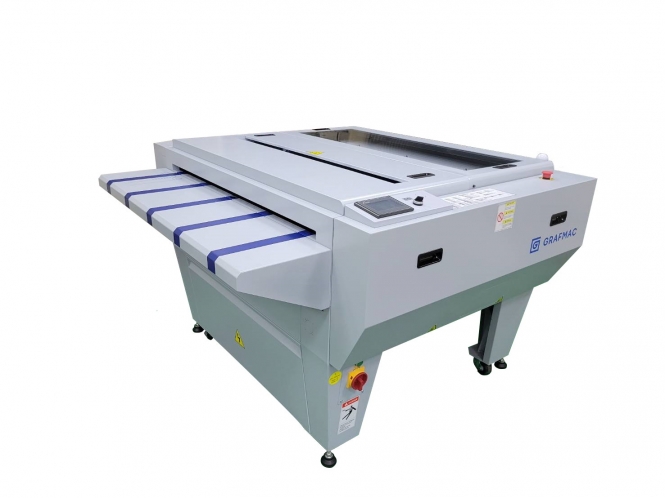

CTP Processor
Technological Innovation, Energy Saving and Carbon Reduction Cut Costs
Main Function
1. Intelligent control system with touch panel. Developing speed define by second. Realtime
monitoring capability.
2. Able to link with various brands of CTP for online or offline mode.
3. Suitable for different developing requirement on various CTP plates.
4. Acceptable plate thickness between 0.15mm~0.4mm.
5. Stable developing temperature control capability within tolerance of ±0.2℃.
6. Unique vortex control of developer circulation / filtering design to ensure
developing condition in stable.
7. Precise developer consumption / oxidation replenishment calculation system.
(Optional PID intelligent replenish system)
8. Gum roller automatic cleaning after daily work completed.
9. Material able to withstand acid & alkali chemical. Sturdy design ensure stable & long run requirement.
10. Dual brushes design enable fine dots up to 10um FM & 4000dpi high resolution
quality developing standard.
11. Selectable water spray function on washing section under standby mode.
It can prevent crystallization on roller surface and extend its useful life.
12. Replenisher & gum empty bucket notice function. (option)
13. Filter cartridge & developer replacing notice function.
Features
1. Sleep mode implemented. Wen machine exceed default standby duration, it will automatically switch to
sleep mode which ale to extend useful life of parts (30%+) and reducing electricity consumption.
2. Automatic gum roller cleaning system. Processor will proceed roller cleaning after developing
job finished to prevent stickiness between gum section rollers.
Conventional standby run (roller rinse) design always causes more water / electricity consumption.
3. Intelligent temperature control system can precisely keep temperature tolerance under ±0.2℃
and to simplify calibration procedure.
4. Intelligent replenishment system: With precise developer consumption /oxidization replenishing
system (Configure with PID replenish system, user can select either conventional mode; saving mode
or precise mode replenishment), it can averagely save 35%~50% developer usage. Under multi-type
plates mixing developing operation, users capable to select desired replenish mode.
5. Realtime alarm message display and recording to remind abnormal processor status to operator.
6. Roller speed auto monitoring.
Optional devices:
? PID intelligent replenishment system
? Automatic replenishment of washing water circulation / filtering system.
? Auto plate stacker with online function
? Plate conveyor with online function
? Plate pre-heat baking device.
? Remote monitoring / service system
Specification
1. Intelligent control system with touch panel. Developing speed define by second. Realtime
monitoring capability.
2. Able to link with various brands of CTP for online or offline mode.
3. Suitable for different developing requirement on various CTP plates.
4. Acceptable plate thickness between 0.15mm~0.4mm.
5. Stable developing temperature control capability within tolerance of ±0.2℃.
6. Unique vortex control of developer circulation / filtering design to ensure
developing condition in stable.
7. Precise developer consumption / oxidation replenishment calculation system.
(Optional PID intelligent replenish system)
8. Gum roller automatic cleaning after daily work completed.
9. Material able to withstand acid & alkali chemical. Sturdy design ensure stable & long run requirement.
10. Dual brushes design enable fine dots up to 10um FM & 4000dpi high resolution
quality developing standard.
11. Selectable water spray function on washing section under standby mode.
It can prevent crystallization on roller surface and extend its useful life.
12. Replenisher & gum empty bucket notice function. (option)
13. Filter cartridge & developer replacing notice function.
Features
1. Sleep mode implemented. Wen machine exceed default standby duration, it will automatically switch to
sleep mode which ale to extend useful life of parts (30%+) and reducing electricity consumption.
2. Automatic gum roller cleaning system. Processor will proceed roller cleaning after developing
job finished to prevent stickiness between gum section rollers.
Conventional standby run (roller rinse) design always causes more water / electricity consumption.
3. Intelligent temperature control system can precisely keep temperature tolerance under ±0.2℃
and to simplify calibration procedure.
4. Intelligent replenishment system: With precise developer consumption /oxidization replenishing
system (Configure with PID replenish system, user can select either conventional mode; saving mode
or precise mode replenishment), it can averagely save 35%~50% developer usage. Under multi-type
plates mixing developing operation, users capable to select desired replenish mode.
5. Realtime alarm message display and recording to remind abnormal processor status to operator.
6. Roller speed auto monitoring.
Optional devices:
? PID intelligent replenishment system
? Automatic replenishment of washing water circulation / filtering system.
? Auto plate stacker with online function
? Plate conveyor with online function
? Plate pre-heat baking device.
? Remote monitoring / service system
Specification
| Model No. | W-PTP-32CDN/T | W-PTP-45CDN/T | W-PTP-48CDN/T | W-PTP-53CDN/T | W-PTP-64CDN/T |
| Max. Plate Width | 850mm | 1100mm | 1200mm | 1300mm | 1600mm |
| Min. Plate Length | 295mm | 295mm | 295mm | 500mm | 500mm |
| Plate Thickness | 0.15 ~ 0.4mm | ||||
| Dev. Tank Cap. | 40L | 50L | 54L | 60L | 90L |
| Dev. Speed | 60 ~ 200cm/min. | ||||
| Dev. Time | 10 ~ 40sec. | ||||
| Dev. Temp | 18℃ ~ 40℃ ±0.2℃，Chiller Included | ||||
| Power Requirement | Single phase, 220~240V, 50/60Hz, 32A | Single phase, 220~240V, 50/60Hz, 40A | |||
| Dimension （L x W x H） |
139x154x103cm | 166x154x103cm | 182x154x103cm | 192x180x114cm | 232x180x114cm |
| Weight | 350Kgs | 420kgs | 470Kgs | 520kgs | 640kgs |
