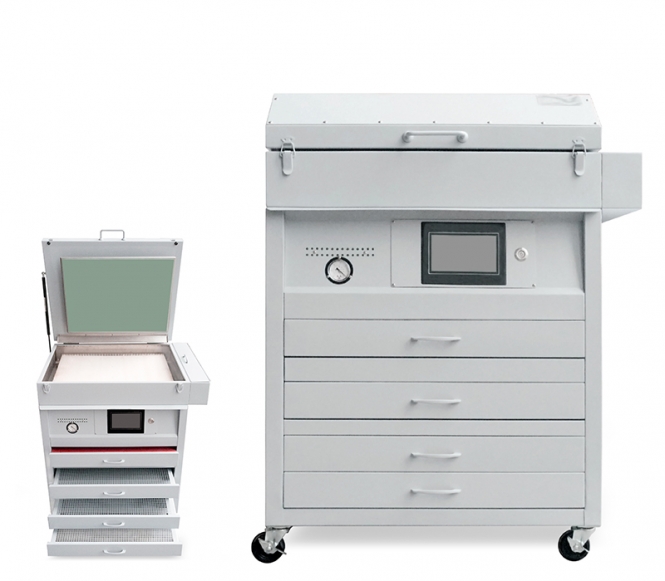

FLEX VIRTUOSO C all-in-one small format 4 in 1 plate maker
FLEX VIRTUOSO C four-in-one plate maker is designed for small format flexo plate. It is integrated with exposure / washout / drying / light finishing functions that applies to precise plate making on various brands of flexo plates. Floor-type and compact structure design makes operation easy. Stainless steel body makes durable service.
?Fine and quick vacuum design with pressure gauge makes high repeatable of printing dot.
?Adopted high power lamp and with 85% up exposure in average.
?Precise light accumulation control system.
?Washing tank featured quick plate loading and bi-directional brushing design and with continuous water supply.
?External detergent circulation filtering device equipped model is suitable for CTP plates that are covered with black layer.
?UV-C lamp support light finishing; detack and enhances plate stability, achieved for long run printing.
?Fine and quick vacuum design with pressure gauge makes high repeatable of printing dot.
?Adopted high power lamp and with 85% up exposure in average.
?Precise light accumulation control system.
?Washing tank featured quick plate loading and bi-directional brushing design and with continuous water supply.
?External detergent circulation filtering device equipped model is suitable for CTP plates that are covered with black layer.
?UV-C lamp support light finishing; detack and enhances plate stability, achieved for long run printing.
| Model | FV-A2-C | FV-A2-CR |
| Application | Flexography plate | CTP flexo plate Water washable plate CTP water washable plate |
| Effective Area | 420*590 | |
| Exposure | UV-A / 600*40w*14pcs | |
| Light-finish | UV-C / 600*40w*14pcs | |
| Bath volume | 50 L | |
| External circulation and filtering | NO | YES (50L) |
| Detergent temperature | Room temperature ~65℃ | |
| Drying Case | 2-layer shelf | |
| Voltage Used | 220VAC 50/ 60HZ 1PH+GND | |
| Power（kw） | 4.4 | |
| Dimension (mm) | 920*740*1150 | |
| Weight (KG) | 120 | |
